Straight Wall Vertical Feed Mixers – V Series
Vertical Feed Mixers – Straight or Sloped Wall Tubs
A vertical feed mixer is a type of feed mixing equipment identified by its vertical orientation, consisting of a tub and vertical augers where ingredients are blended. The two main types of mixers are sloped wall (S-Series) and straight wall (V-Series) mixers.
The V-Series mixer has tub walls that have no angle or slope. This creates more pressure to force the feed to move downward and around the mixer, so it doesn’t get stagnant. This design allows for lower loading height and door clearance.
Overview
Herd-Boss’s heavy duty vertical mixer with straight wall tubs offers several advantages over one with sloped wall tubs. The design of straight wall tubs allow for lower height clearance, versatility with different loading equipment, and great clean out.
Advantages
S-Series mixers promote a natural tumbling action that enhances the mixing process and works efficiently with the auger design. This design facilitates a more uniform ration mix in less time compared to the V-Series designs, where materials may not circulate as effectively.
Herd-Boss minimizes dead zones where material can build up, ensuring a cleaner and more consistent volcanic mix by not allowing feed to accumulate in the corners.
The absence of sharp corners and the smoother transition between the walls and the base in vertical mixer tubs simplify cleaning processes. This design reduces the risk of cross-contamination and decreases downtime for maintenance.
The geometry of Herd-Boss vertical mixer tubs facilitate better material flow towards the auger’s moving parts and discharge outlet. This is particularly beneficial for materials that are prone to bridging or compacting, ensuring a more efficient emptying process.
Herd-Boss Vertical Mixers can handle a wide range of materials, from powders to granules, and even some pastes and slurries. The improved mixing action and material flow make it suitable for applications requiring the blending of materials with varying densities and particle sizes.
The efficient mixing action and reduced resistance against material movement in sloped wall designs can lead to lower energy consumption compared to straight wall mixers. This makes them more sustainable and cost-effective in the long run.
Best Suited Applications
The S-Series vertical feed mixer is best where uniformity and consistency are critical for feed mix quality while staying efficient with costs. The V-Series are also great mixers for mix quality but the sloped walls of the S-Series reduces horsepower requirements.
Industries focusing on minimizing waste and contamination, benefit from the efficient emptying and reduced material buildup from all Herd-Boss vertical mixers.
The V-Series mixer is best suited when a lower height requirement is needed. These mixers allow for a lower loading height while also holding a large capacity.

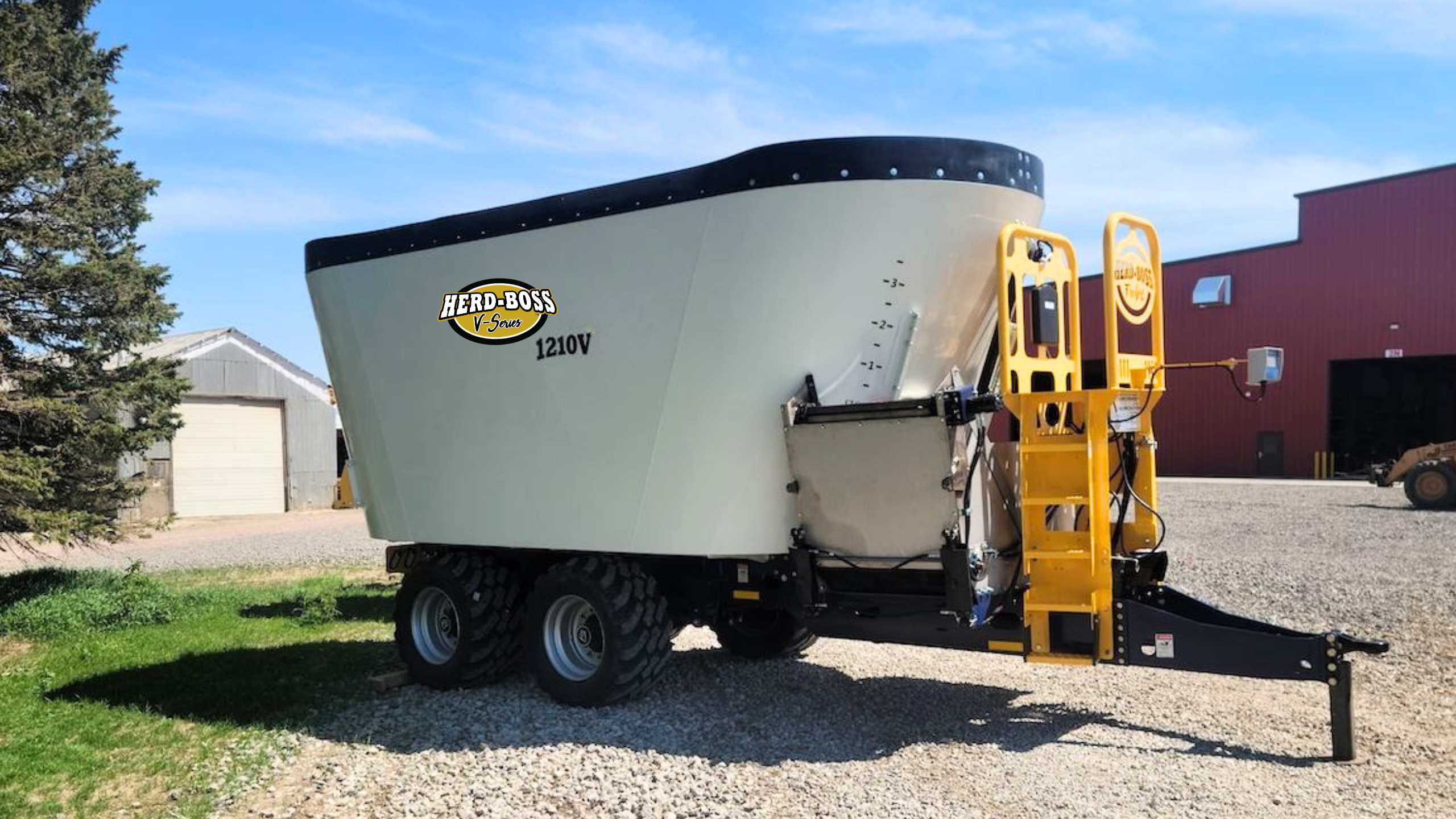

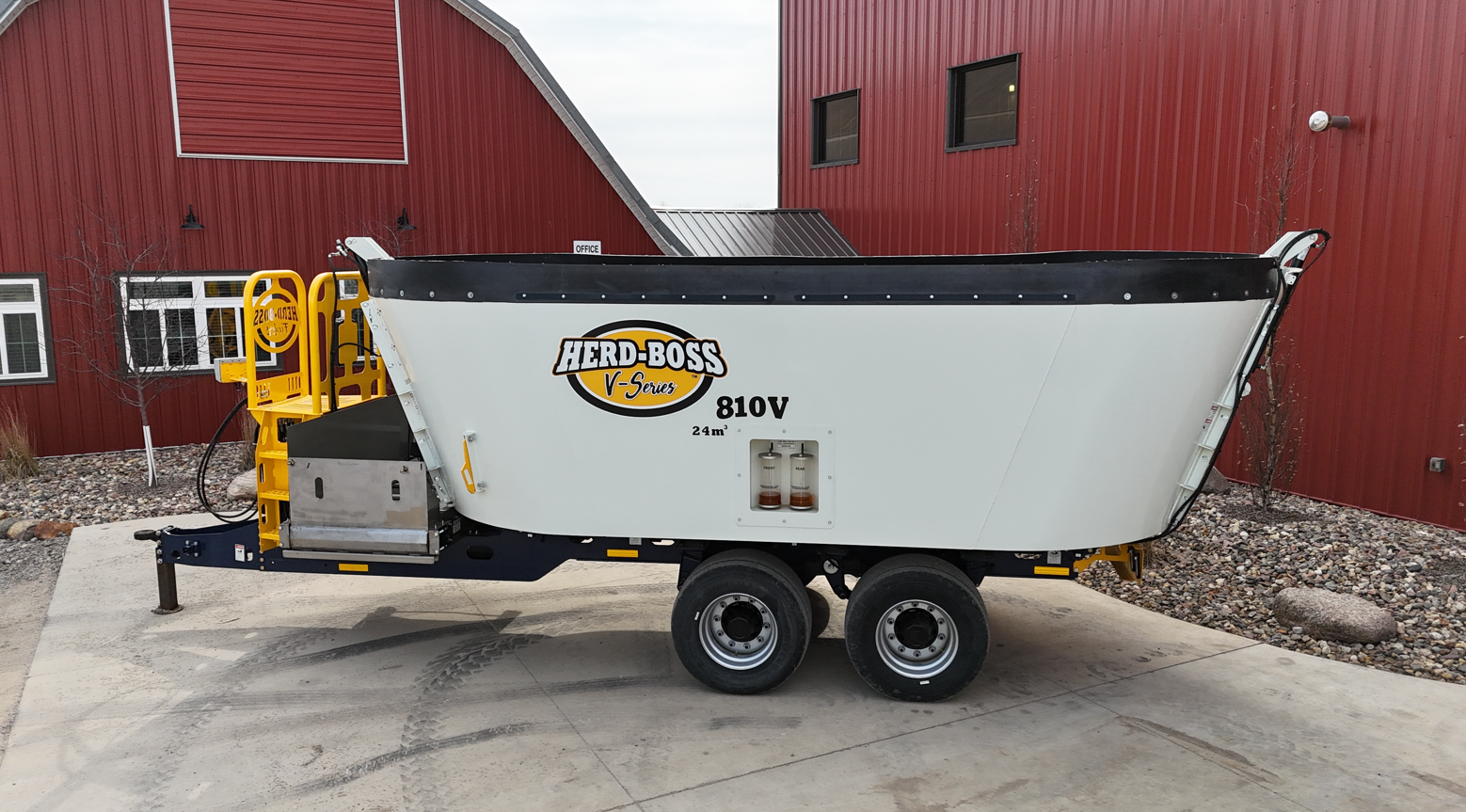

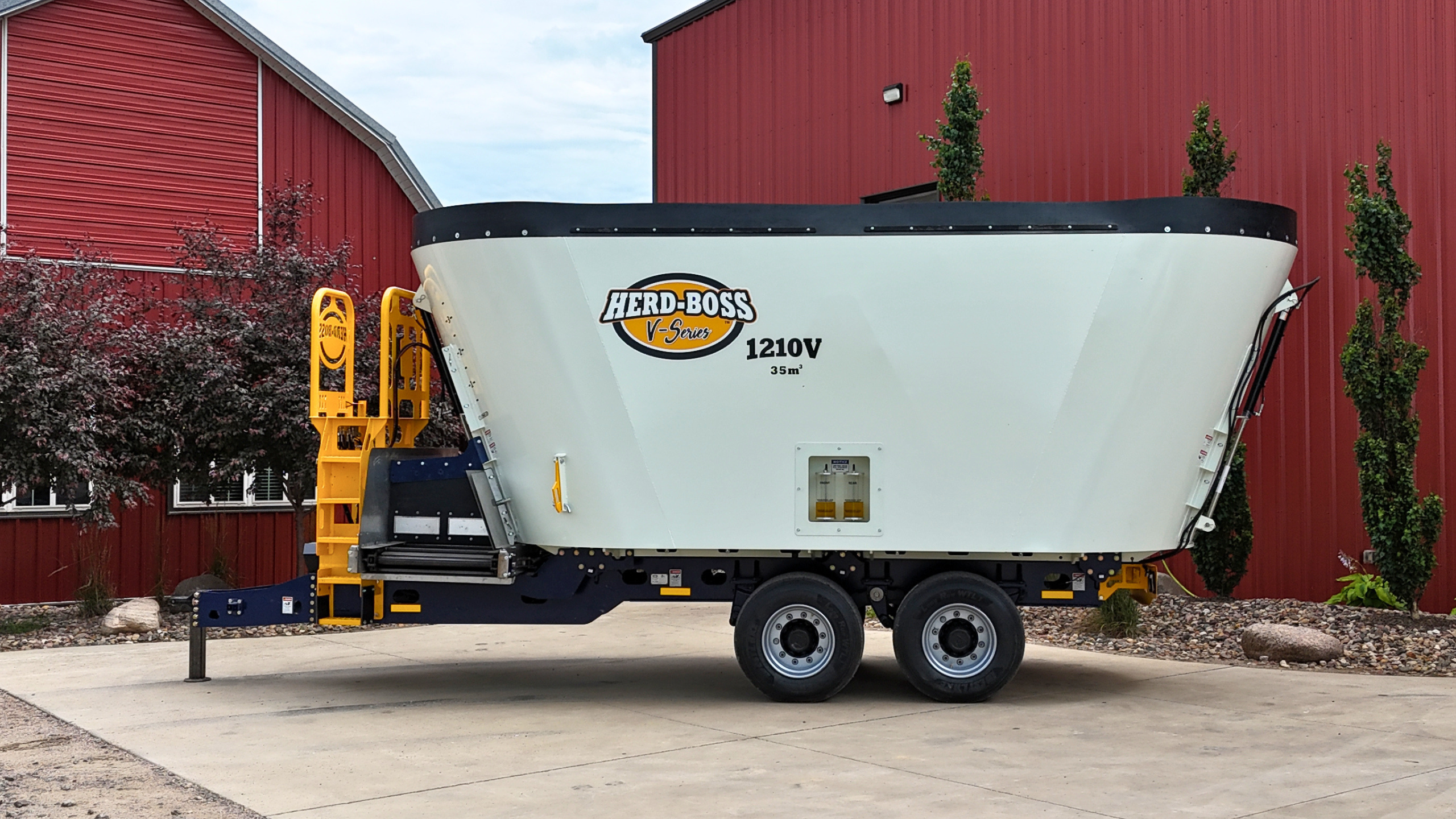

Straight Wall Models – V Series
| THE SPECS | 510V | 810V | 980V | 1210V | 1810V |
|---|---|---|---|---|---|
| Capacity Top of Steel | 444 ft3 12.6 m3 | 700 ft3 19.8 m3 | 850 ft3 24.1 m3 | 1080 ft3 30.6 m3 | 1616 ft3 45.8 m3 |
| Capacity W/ Rubber Ext. | 523 ft3 14.8 m3 | 810 ft3 23 m3 | 980 ft3 27.8 m3 | 1210 ft3 34.3 m3 | 1821 ft3 51.6 m3 |
| Width W/ Flip-Up Conv. | 121 in 3 m | 121 in 3.1 m | 121 in 3.1 m | 121 in 3.1m | 121 in 3.1 m |
| Width W/O Mag Tray | 108 in 2.7 m | 108 in 2.7 m | 108 in 2.7 m | 108 in 2.7 m | 108 in 2.7 m |
| Tub Width | 103 in 2.6 m | 108 in 2.7 m | 103 in 2.6 m | 103 in 2.6 m | 103 in 2.6 m |
| Overall Length | 237 in 6 m | 345 in 8.8 m | 345 in 8.9 m | 346 in 8.9 m | 455 in 11.6 m |
| Overall Height Top of Steel | 116 in 3 m | 103 in 2.6 m | 116 in 3 m | 131 in 3.3 m | 131 in 3.3 m |
| Overall Height W/ Rubber Ext. | 126 in 3.2 m | 113 in 2.9 m | 126 in 3.2 m | 141 in 3.6 m | 141 in 3.6 m |
| Weight Empty | 12,500 lbs 5,670 kg | 22800 lbs 10341 kg | 23500 lbs 10659 kg | 25400 lb 11521 kg | 34500 lbs 15649 kg |
| Floor Thickness | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 |
| Wall Thickness | 3/8 in 9.5 mm AR200 | 3/8 in 9.5 mm AR200 | 3/8 in 9.5 mm AR200 | 3/8 in 9.5 mm AR200 | 3/8 in 9.5 mm AR200 |
| Auger Flights | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 | 3/4 in 19.1 mm AR200 |
| SS Conveyor Floor | 3/16 in 4.8 mm SS | 3/16 in 4.8 mm SS | 3/16 in 4.8 mm SS | 3/16 in 4.76mm SS | 3/16 in 4.8mm SS |
| Minimum HP Requirements | 85HP | 130HP | 150HP | 180HP | 250HP |
