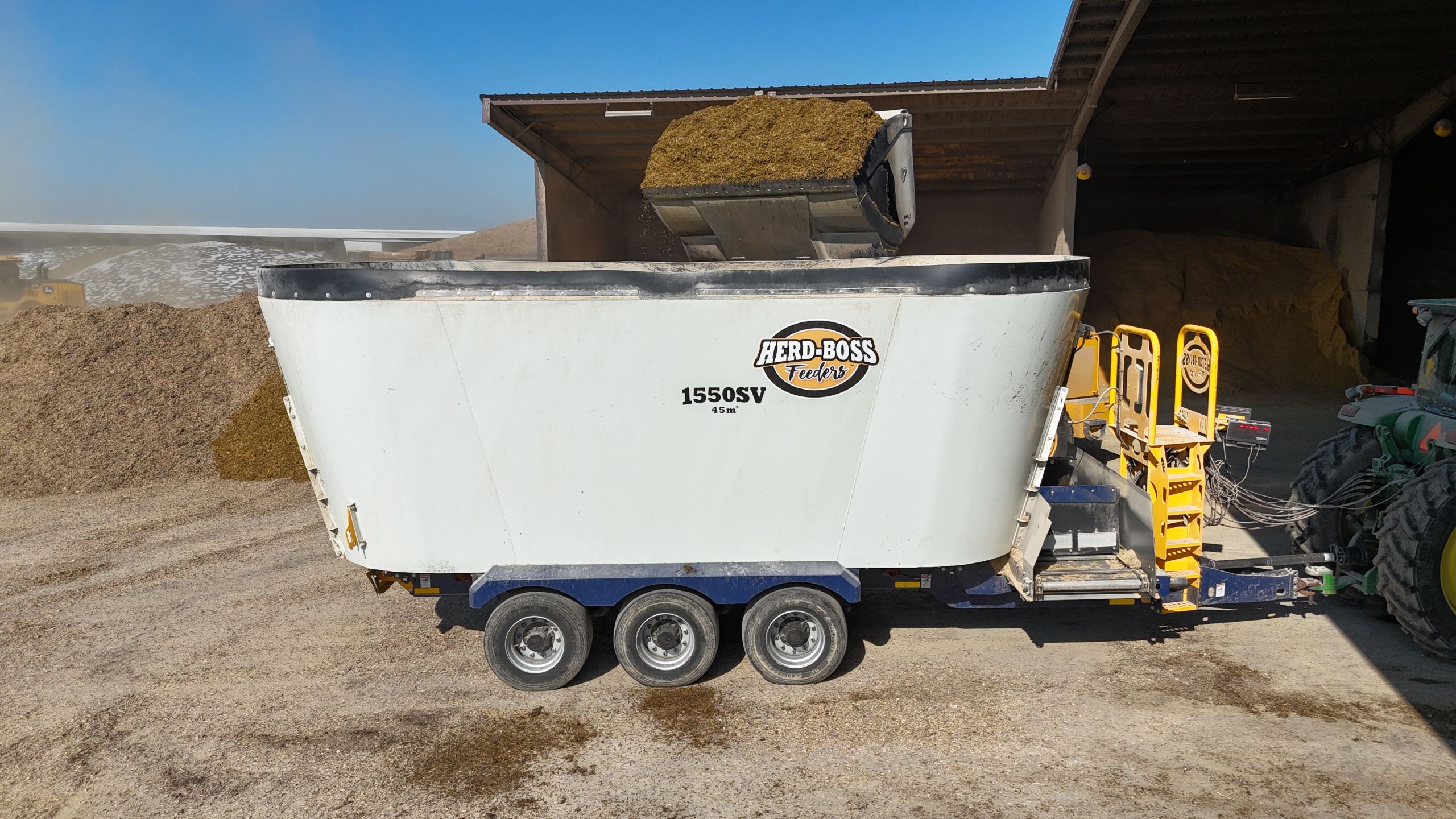

1550SV Vertical Feed Mixer
1550SV Overview
The 1550SV S-Series Triple Screw Mixer boasts an expansive 1587 cu. ft. capacity, tailored for the most demanding and extensive feed mixing operations. Its triple screw design ensures unparalleled consistency and efficiency, catering to the needs of very large dairy and feedlot operations. This model merges high-capacity mixing with the flexibility and durability expected of the Herd-Boss brand.
Specifications
The 980V vertical feed mixer from Herd-Boss is built with toughness and durability in mind. It comes equipped with several key features:
- Thick Rubber Extension: This mixer includes a robust 10” rubber extension to minimize spillage during operation.
- Abrasion-Resistant Auger Flighting: The auger flighting is constructed from 3/4” abrasion-resistant material, reducing wear and extending the mixer’s lifespan.
- Durable Side Walls and Floor: Side walls made from 3/8” abrasion-resistant material and a 3/4″ abrasion-resistant floor ensure longevity.
- Robust Steel Frame: The frame boasts a robust steel construction to withstand wear and tear over time.
- Stainless Steel Conveyors: Herd-Boss Conveyors feature all stainless steel construction, reducing corrosion and wear.
Customers have the flexibility to choose from various options to customize their 980V vertical feed mixer. Some of the available options include:
- Auger plow blade options: 45° plow blade (Standard), 30° plow blade.
- Tire options: Super Single tires (Standard – 435/50R19.5), Lugger tires (560/45R22.5).
- Axle options: Rigid/Rigid Straight axles with Hyd. Brakes (Standard), Rigid/Steering Axles with Hyd. Brakes.
- Conveyor options: Various conveyor lengths, including 8’ Flat Dual Sliding Conveyor and Flip-Up Conveyors.
- Hydraulic Jack: Customers can choose to include a hydraulic jack for added convenience.
- Hitch options: Bull Pull Hitch (standard), Clevis Hitch.
| THE SPECS | 1550SV Vertical Feed Mixer |
|---|---|
| Capacity Top of Steel | 1,400 ft3 39.6 m3 |
| Capacity W/ Rubber Ext. | 1,587 ft3 44.9 m3 |
| Width W/ Flip-Up Conv. | 129 in 3.3 m |
| Width W/O Mag Tray | 121 in 3.1 m |
| Tub Width | 121 in top, 84 in bottom 3.1 m top, 2.1 m bottom |
| Overall Length | 391 in 9.9 m |
| Overall Height Top of Steel | 138 in 3.5 m |
| Overall Height W/ Rubber Ext. | 148 in TH 3.8 m |
| Weight Empty | 33500 lb 15195 kg |
| Floor Thickness | 3/4 in 19.1 mm AR200 |
| Wall Thickness | 3/8 in 9.5 m AR200 |
| Auger Flights | 3/4 in 19.1 mm AR200 |
| SS Conveyor Floor | 3/16 in 4.8 mm SS |
| Minimum HP Requirements | 200HP |
