4-Auger Horizontal Feed Mixers
Auger Horizontal Mixers from Herd-Boss
Auger Mixers are a type of Horizontal feed mixer and differ from Reel style mixers in the mechanics used to mix the product. Each style has its own advantages depending upon your applications and requirements. This page offers insights on which model is right for your needs. Herd-Boss manufactures a wide range of auger mixers to accommodate your feed requirements.
Overview
The Herd-Boss Auger Horizontal Mixer is the choice for a thorough and efficient blending of the most common beef and low roughage dairy rations. With a unique 4-auger mixing chamber featuring an unequal belly height and raised auger design, these mixers promote a complete and gentle blend of ingredients with fewer fines and dead spots.
Increasingly, today’s producers use rations that contain large amounts of protein and by-products, resulting in a denser ration. A greater density ration means the mixer must accommodate more pounds of feed per cubic foot. The Auger Horizontal HDR models (4750 & 4900) have been developed specifically for these high-density rations. The HDR models incorporate an increased torque capacity and other design enhancements to meet the demands of these high density rations.
Standard Features
All of our Auger Type Horizontal Mixers feature a design that promotes a complete and gentle blend of ingredients with fewer fines and dead spots and the ability to mix all types of rations. Additional features include:
4-Auger Mixer Models
4500 Auger Mixer
The Herd-Boss 4500 sets the stage in our Horizontal Feed Mixers lineup with a 525 cubic foot capacity, optimized for beef and dairy rations. As the entry point into our Auger Mixer collection, it’s perfectly suited for operations seeking efficiency and precision. Available in both trailer and truck configurations, this model offers the versatility and reliability Herd-Boss is known for, catering to a wide range of processed feed applications.

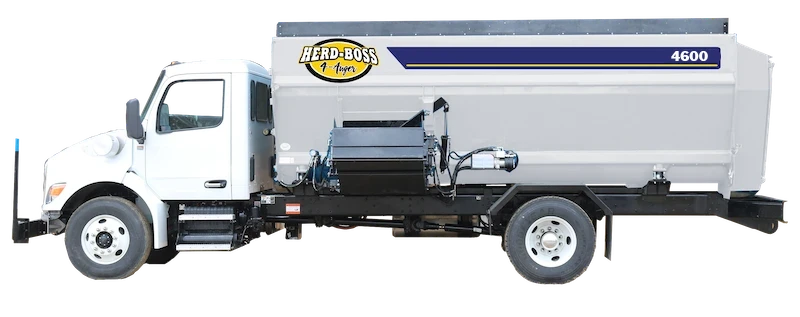

4600 Auger Mixer
With the Herd-Boss 4600, step into a realm of enhanced feed mixing capabilities, featuring a 630 cubic foot capacity and an 18,900 lbs payload. This model is designed for medium to large-scale operations focusing on efficiency and consistency in feed preparation. Available in both trailer and truck mount configurations, the 4600 excels in delivering high-quality mixes for a variety of rations, showcasing Herd-Boss’s dedication to performance and adaptability.

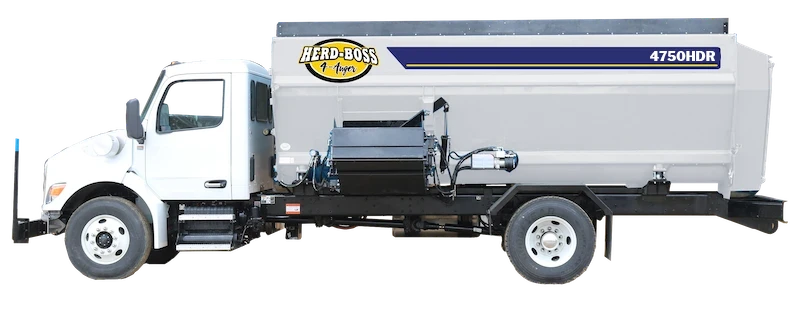

4750 HDR Auger Mixer
The Herd-Boss 4750 HDR advances the capabilities of Horizontal Feed Mixers with its 750 cubic foot capacity and a 26,250 lbs payload, making it a standout choice for operations looking to scale their feed mixing processes. Available for both trailer and truck mounts, this model emphasizes the seamless integration of capacity and efficiency, reinforcing Herd-Boss’s leadership in crafting solutions that support a broad spectrum of feed mixing needs.
4900 HDR Auger Mixer
Introducing the Herd-Boss 4900 HDR, the ultimate in Auger Mixers, exclusively configured for truck mounts with a commanding 900 cubic foot capacity and a 31,500 lbs payload. This model is engineered for the highest demands in feed mixing, focusing on delivering unparalleled performance. As the flagship of Herd-Boss Horizontal Feed Mixers, it is designed to meet the sophisticated needs of large-scale operations, ensuring consistency and quality in every mix.
Truck Model Comparison
| THE SPECS | 4500 Truck | 4600 Truck | 4750HDR Truck | 4900HDR Truck |
|---|---|---|---|---|
| Capacity Top of Steel | 525 ft3 14.9 m3 | 630 ft3 17.8 m3 | 750 ft3 20.7 m3 | 900 ft3 25.5 m3 |
| Overall Length | 207 in 5.3 m | 244 in 6.2 m | 244 in. 6.2 m | 301 in. xx cu/m |
| Weight Empty | 14800 lb 6713 m | 16600 lbs 7530 m | 20580 lb 9334 kg | 21,760 lb 9870 kg |
| Mixing Chamber Length | 180 in 4.6 m | 216 in 5.5 m | 216 in 5.5 m | 216 in 5.5 m |
| Front Discharge to Bumper | 172 in 4.4 m | 208 in 5.3 m | 209 in 531 cm | 209 in 5.3 m |
| Overall Height | 114 in 2.9 m | 114 in 2.9 m | 123 in 3.1 m | 134 in 3.4 m |
| Tread Width | 94 in 2.4 m | 94 in 2.4 m | 94 in 2.4 m | 103 in 2.6 m |
| Overall Width Mixer Only | 97 in 2.5 m | 97 in 2.5 m | 102 in 2.6 m | 102 in 2.6 m |
| Maximum Net Load | 15,750 lb 7144 kg | 18,900 lb 8573 kg | 26250 lb 11906 kg | 31500 lb 14288 kg |
| Flighting Diameter Lower Auger | 28 in 71 cm | 28 in 71 cm | 28 in 71 cm | 28 in 72 cm |
| Flighting Diameter Upper Auger | 28 in. 72 cm | 28 in. 71 cm | 28 in. 71 cm | 28 in. 72 cm |
Trailer Model Comparison
| THE SPECS | 4500 Trailer | 4600 Trailer | 4750HDR Trailer |
|---|---|---|---|
| Capacity Top of Steel | 525 ft3 14.9 m3 | 630 ft3 17.8 m3 | 750 ft3 20.7 m3 |
| Overall Length | 261 in 6.6 m | 296 in 7.5 m | 301 in. xx cu/m |
| Weight Empty | 16400 lb 7439 m | 18000 lbs 8164.7 m | 23500 lb 10659.4 kg |
| Mixing Chamber Length | 180 in 4.6 m | 216 in 5.4 m | 216 in 5.5 m |
| Front Discharge to Bumper | 171 in 4.3 m | 203 in 5.2 m | 209 in 5.3 m |
| Overall Height | 108 in 2.7 m | 108 in 2.7 m | 117 in 3 m |
| Tread Width | 95 in 2.4 m3 | 95 in 2.4 m | 103 in 2.6 m |
| Overall Width Mixer Only | 99 in 2.5 m | 99 in 2.5 m | 102 in 2.6 m |
| Maximum Net Load | 15,750 lb 7144 kg | 18,900 lb 8573 kg | 26,250 lb 11909 kg |
| Flighting Diameter Lower Auger | 28 in 72 cm | 28 in 71 cm | 28 in 72 cm |
| Flighting Diameter Upper Auger | 28 in. 72 cm | 28 in. 71 cm | 28 in 72 cm |
Advantages
Our Auger mixers feature four horizontally mounted augers that rotate within the mixing chamber to push and pull the ingredients horizontally, facilitating thorough mixing as materials move along the length of the mixer.
Auger mixers offer efficient blending, particularly for dry and dense ingredients, ensuring uniform distribution.
They can handle a wide range of feed ingredients, including grains, supplements, and concentrates.
Auger mixers often have higher mixing capacities compared to reel mixers, making them suitable for larger-scale operations.
Best Suited Applications
Auger mixers are commonly used in beef and feedlot operations for mixing high-energy rations efficiently.
They are ideal for mixing dry ingredients like grains and concentrates, ensuring thorough blending.
Auger mixers are well-suited for large-scale farms and feedlots due to their higher capacity and efficient mixing capabilities.
