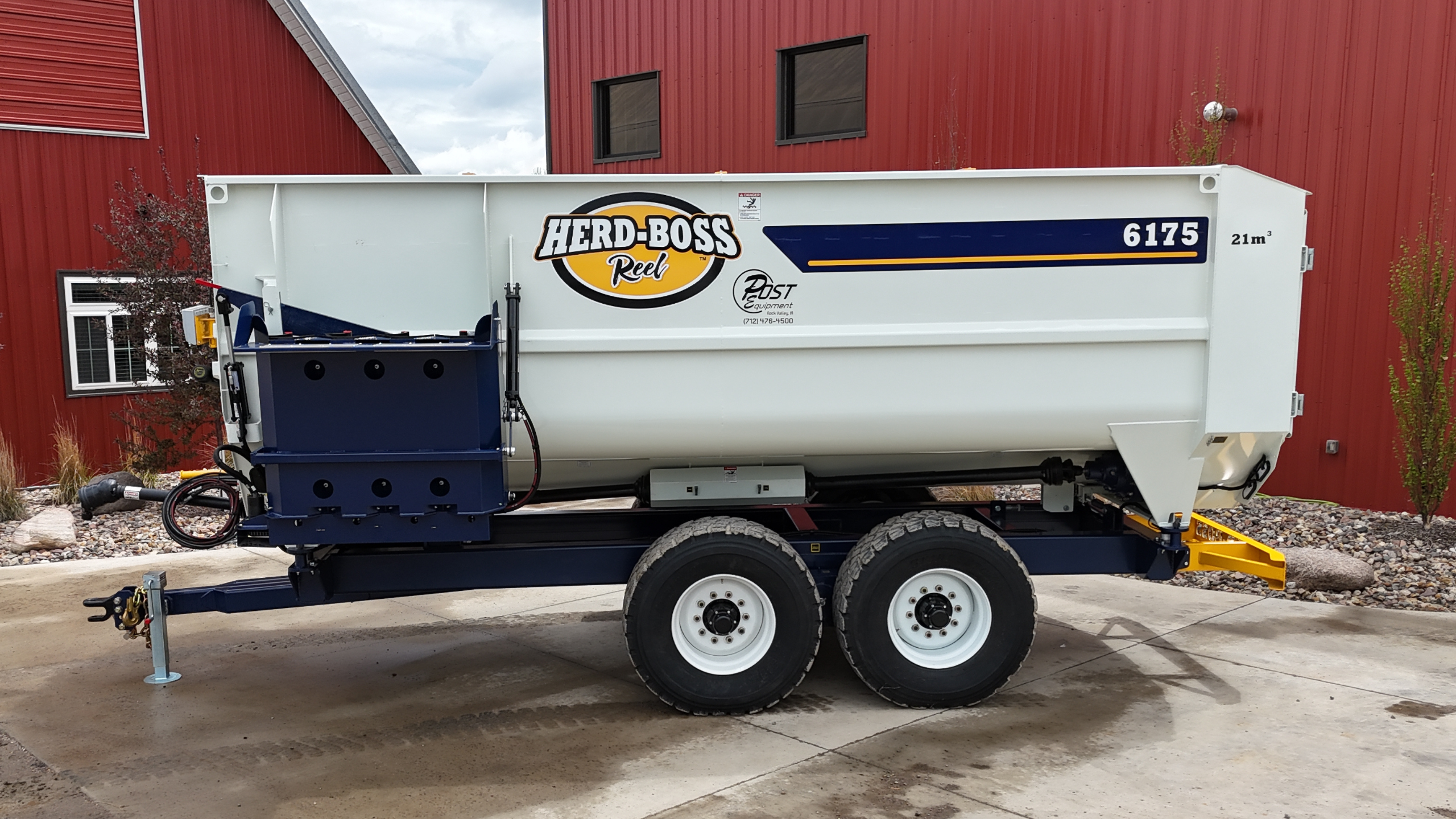

6175 Trailer
| THE SPECS | 6175 Trailer |
|---|---|
| Capacity Top of Steel | 750 ft3 (21 m3) |
| Overall Length | 290 in (7 m) |
| Mixing Chamber Length | 210 in (5 m) |
| Front Discharge to Bumper | 225 in (6 m) |
| Overall Hieght | 120 in (3 m) |
| Tread Width | 103 in (3 m) |
| Overall Width (Mixer Only) | 107 in (3 m) |
| Weight Empty | 24,950 lbs (11,317 kg) |
| Maximum Net Load | 22,500 lbs (10,206 kg) |
| Flight Diameter Lower Auger | 24 in (61 cm) |
| Flighting Diameter Upper Auger | 24 in (56 cm) |
| HP Requirement | 150 |
- Grade 50 steel tubs for better wear resistance and higher fatigue strength
- Larger sprocket diameters reduce chain pull for smoother operation
- Tsubaki® roller chain
- Direct reel drive Nyoil bushing
- Splined auger drive shafts
- Heavy Duty 10-bolt hubs 20-Ton ADR Axle With Various Tire Sizes
- Drop side for eaisier loading (6129, 6135, 6141)
- Bucket guards
- Bottom augers are 3/4” flights at the convergence area are supported by 1/2” or 3/4” tubes for long life
- Oil bath enclosure
- Shear bolt protection
- Trailers are designed to haul loads up to 30 lbs/ft³
- Hydraulical slide tray with magnets for simple feed placement
- Hydraulical auger discharge with magnets for applications needing more height or reach
- Knives for top auger for processing bulky ingredients
- Stainless steel liners (partial or full)
- Digi-Star®, Avery Weigh-Tronix®, and Point® scale systems
