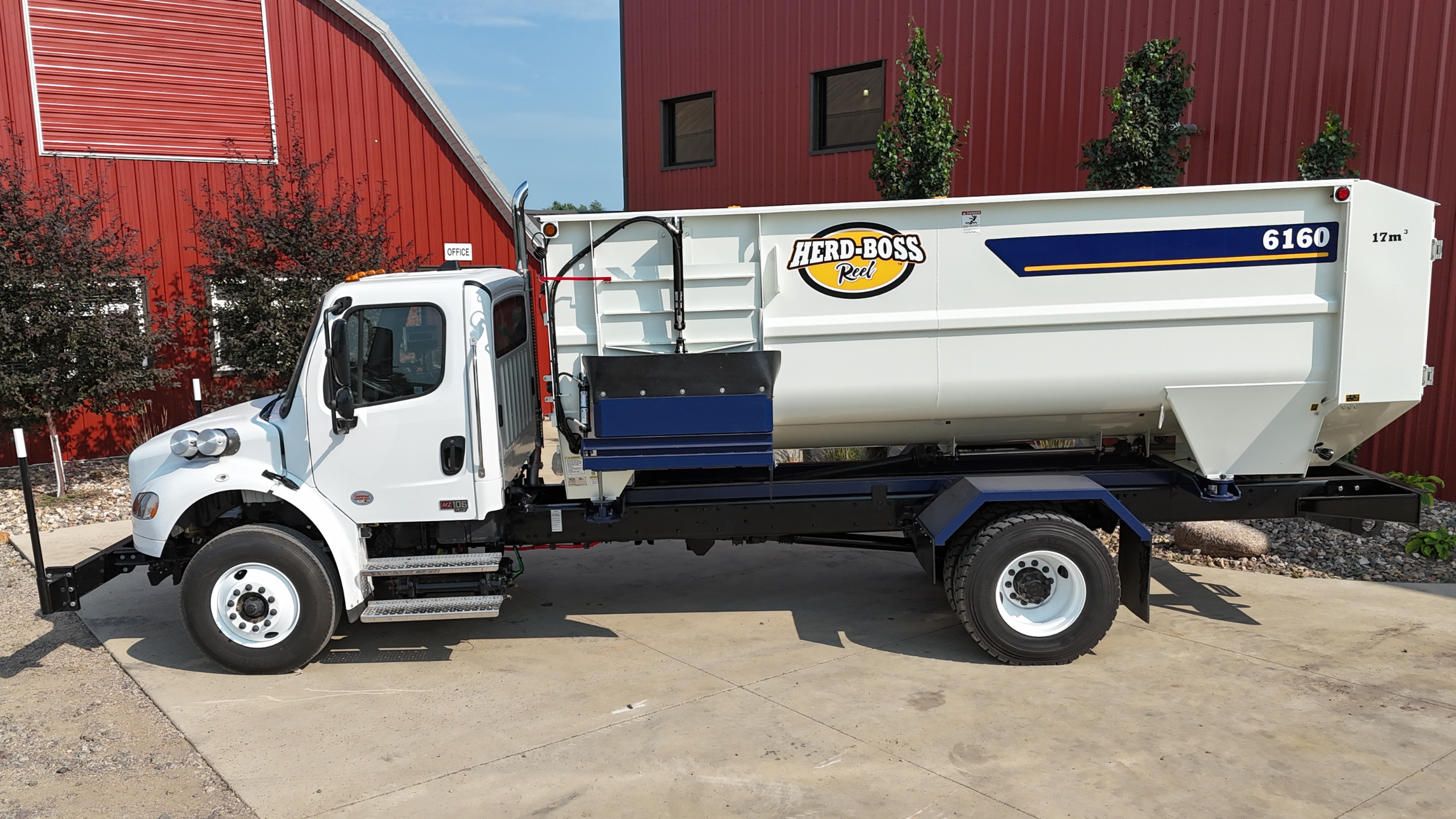

6160 Truck
| THE SPECS | 6160 TRUCK |
|---|---|
| Capacity Top of Steel | 600 ft3 (17 m3) |
| Overall Length | 236 in (6m) |
| Mixing Chamber Length | 198 in (5 m) |
| Front Discharge to Bumper | 208 in (5 m) |
| Overall Height | 119 in (3 m) |
| Overall Width (Mixer Only) | 102 in (3 m) |
| Weight Empty | 17,600 lbs (7,983 kg) |
| Maximum Net Load | 18,000 lbs (8,165 kg) |
| Flighting Diameter Lower Auger | 24 in (61 cm) |
| Flighting Diameter Upper Auger | 22 in (56 cm) |
| HP Requirement | 275 |
Truck Configuration:
In addition to the trailer features, the truck-mounted 6160 includes an ergonomic control console with scale mount, heavy-duty driveline with shear protection, and a durable rear bumper designed for push and pull capabilities. It’s tailored for efficiency and durability in tough environments, featuring steel fenders and optional bunk lights.
Truck Configuration:
Options to enhance the truck mixer include a reversible engine fan for radiator cleaning, remote AC condenser for improved airflow, and a RAM system for operational efficiency. A roller bumper, air filter precleaner, and auxiliary transmission are available to extend maintenance intervals and optimize performance.
