4900HDR
4900HDR Overview

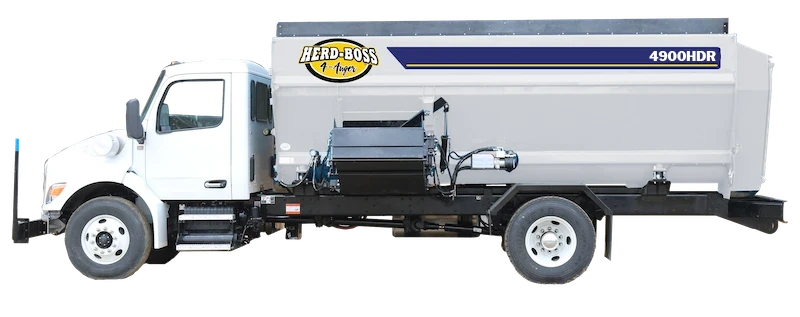

Introducing the Herd-Boss 4900 HDR, the ultimate in Auger Mixers, exclusively configured for truck mounts with a commanding 900 cubic foot capacity and a 31,500 lbs payload. This model is engineered for the highest demands in feed mixing, focusing on delivering unparalleled performance. As the flagship of Herd-Boss Horizontal Feed Mixers, it is designed to meet the sophisticated needs of large-scale operations, ensuring consistency and quality in every mix.
Specifications
Truck Configuration:
For the truck configuration, in-cab controls allow for easy operation of the PTO, discharge, and door. The truck can be customized with a reversible engine fan, remote AC condenser, or a 2-speed auxiliary transmission. A RAM (Remote Activated Mixer) system enhances efficiency by allowing the mixer to be turned on remotely.
Enhance your 4900 4-Auger Mixer with a range of options to suit any operation’s specific needs. Options include Digi-Star & Weigh-Tronix scale systems for precise rationing, rubber extensions for added volume, and stainless steel construction for durability in 500 & 600 cubic foot models. It is an option for other models. Additionally, bolt-on knives for the bottom auger and various discharge system customizations provide further flexibility and efficiency in feed mixing processes.
| THE SPECS | 4900HDR Truck |
|---|---|
| Capacity Top of Steel | 900 ft3 25.5 m3 |
| Overall Length | 301 in. xx cu/m |
| Weight Empty | 21,760 lb 9870 kg |
| Mixing Chamber Length | 216 in 5.5 m |
| Front Discharge to Bumper | 209 in 5.3 m |
| Overall Height | 134 in 3.4 m |
| Tread Width | 103 in 2.6 m |
| Overall Width (Mixer Only) | 102 in 2.6 m |
| Maximum Net Load | 31500 lb 14288 kg |
| Flighting Diameter Lower Auger | 28 in 72 cm |
| Flighting Diameter Upper Auger | 28 in. 72 cm |
