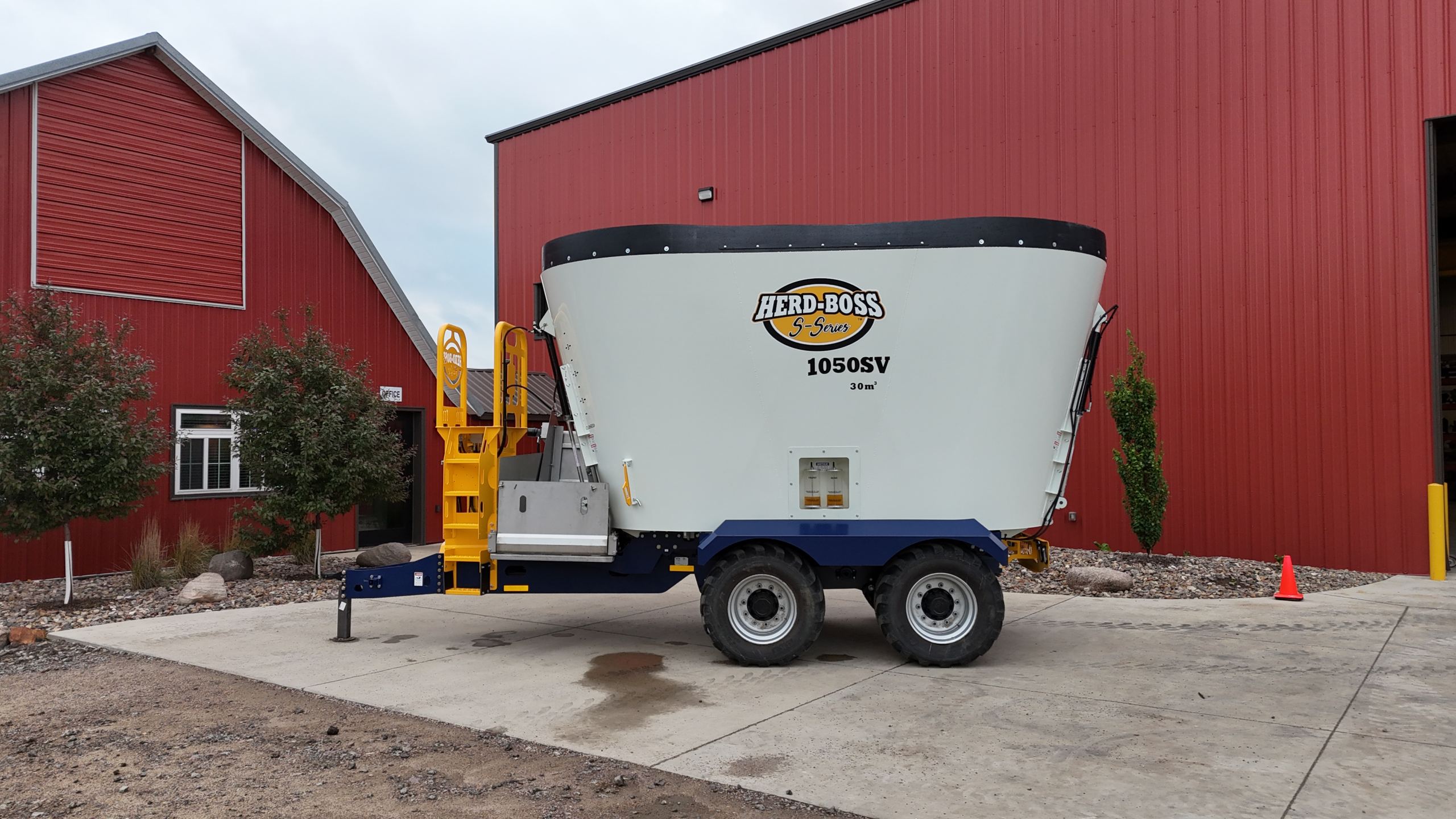

1050SV Vertical Feed Mixers
1050SV Vertical Feed Mixers Overview
The 1050SV vertical feed mixer represents the intermediate size of our sloped side wall feed mixers. With a generous capacity of 1,050 cu. ft., this mixer is designed to meet the demands of modern feed mixing.
Specifications
The 1050SV vertical feed mixer from Herd-Boss comes equipped with a range of standard features and accessories designed for durability and efficiency:
- Thick Rubber Extension: Included for spillage reduction, the mixer features a robust 10” rubber extension.
- Abrasion-Resistant Auger Flighting: The auger flighting is constructed with 3/4” abrasion-resistant material to minimize wear.
- Durable Side Walls and Floor: Side walls are made with 3/8” abrasion-resistant material, and the floor is composed of 3/4″ abrasion-resistant material.
- Robust Steel Frame: Built to withstand wear and tear, the mixer frame is constructed from robust steel.
- Stainless Steel Conveyors: Herd-Boss Conveyors have an all-stainless steel construction to reduce corrosion and wear.
Customers looking to purchase the 1050SV vertical feed mixer have a range of options to choose from:
- Auger plow blade options: 45° plow blade (Standard), 30° plow blade.
- Tire options: Super Single tires (Standard – 435/50R19.5), Lugger tires (560/45R22.5).
- Axle options: Rigid/Rigid Straight axles with Hyd. Brakes (Standard), Rigid/Steering Axles with Hyd. Brakes.
- Conveyor options: Various conveyor lengths, including 8’ Flat Dual Sliding Conveyor and Flip-Up Conveyors.
- Hydraulic Jack: Customers can opt for a hydraulic jack for added convenience.
- Hitch options: Bull Pull Hitch (standard), Clevis Hitch.
| THE SPECS | 1050SV Feed Mixer |
|---|---|
| Capacity Top of Steel | 1064 ft3 (30.1 m3) |
| Capacity W/ Rubber Ext. | 935 ft3 (26.48 m3) |
| Width W/ Flip-Up Conv. | 128 in (3.3 m) |
| Width W/O Mag Tray | 121 in (3.1m) |
| Tub Width | 121-84 in (3.1-2.1 m) |
| Overall Length | 301 in (7.7 m) |
| Overall Height Top of Steel | 138 in (3.5 m) |
| Overall Height W/ Rubber Ext. | 148 in TH (3.8 m) |
| Overall Height W/ Door Bracket | n/a |
| Weight Empty | 23000 lbs (10433 kg) |
| Floor Thickness | 3/4 in (19.1 mm) AR200 |
| Wall Thickness | 3/8 in (9.5 mm) AR200 |
| Auger Flights | 3/4 in (19.1 mm) AR200 |
| SS Conveyor Floor | 3/16 in (4.8 mm) SS |
| Minimum HP Requirements | 180HP |
